WIND POWER GENERATION CONTROL CABLE GJ BFZU

Armored Optical Fiber Cable System for Emergency Condition Use

Descriptions:

he cable in this system utilizes a PVC/LSZH tube that contains 4~12 tight-buffered fibers surrounded by aramid yarns strength member, and sheathed by a stainless hose and braided stainless steel layer, then with a PVC/LSZH jacket.lt is wounded on a specially designed for rush repair and terminated by standard connectors.This cable system can be use for emergency conditions to change the failure lines by repeated mechanical connection methods,and it is convenient returned and repeated used.

Applications:

Live broadcast transmission

Project rush repair

Telecommunication equipment room transfer

Line test

Rush repair mainly for aerial,duct and direct buried temporary conditions.

Features:

Stainless steel hose protected the fibers from unnecessary damage.

Excellent crush,bend and tensile performance,anti-ants and rodent resistance.

Soft and small diameter,compact and light weight;Easy operation and convenient carrying.

Save rush repair time and maintenance costs,and the armored structure can protect the fiber from various stress,thus keep the stability of optical transmission.

No need to worry about construction damage to the optical fibers,double brake and transportation tie devices enable the system is very convenient use and easy carrying.

Each terminal has different color identified boot and robust branch device. Standard connectors such as FC/SC/ST/MU/LC/E2000 are available upon request.

Applicable temperature: -20°C~+60°C;

Environmental protection level: Comply with EU RoHS Standard.

Transmission Performance

Note:

1. represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client' s special requirements.

Products Overview:

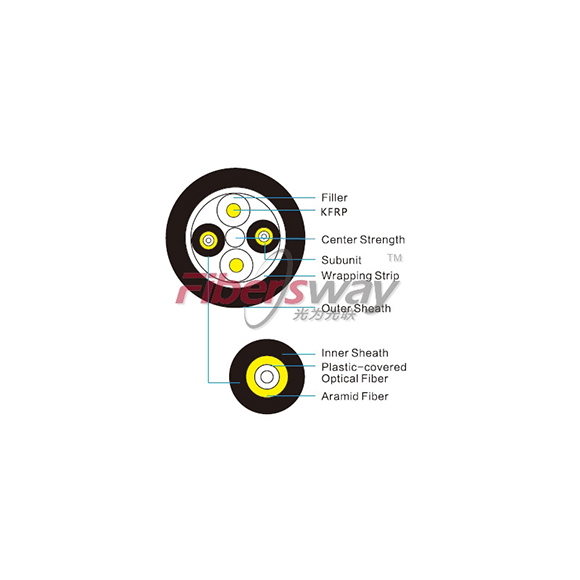

GJBFZU (nonmetal strength, TPU sheath, wind power generation control cable) wind power generation control cable is utilizes plastic clad fiber (unit cable utilizes high-intensity aramid fiber) as reinforced element, and extrude to manufacture a layer of TPU inner sheath. The filling cable adopts high-intensity KFRP as reinforced element and extrudes to manufacture a layer of LSZH inner sheath stranded by two pieces of plastic clad fiber unit cable and two pieces of filling cable winding FRP center strength to make cable core and extrude to manufacture a layer of TPU outer sheath.

Applications:

Wind generating set FastBus communication.

Feature:

Small outer diameter jight weight and low construction cost; It adtsG-FRP aramid fiber reinforced fiber bar (K-FRP),flexible and has good bending property to ensure optical cable bending radius conform tothe requirement and ensure transmission feature of optical fiber stable for along term. Using TPU outer sheath with outstanding oil resistivity,abrasive resistance and fungus resistance; Each pieceofunitcable includes independent reinforced element, which can be terminated with standard joint directly. >Applicable temperature: -4 ℃+8 ℃Environmental standard: Comply with EU RoHS Standard.

Technical parameters (typical value)

Note:

1. "D" represents the outer diameter of the short shaft.

2. The typical value can be correspondingly adjusted according to actual conditions.

3. The corresponding products can be designed according to client9 s special requirements.
